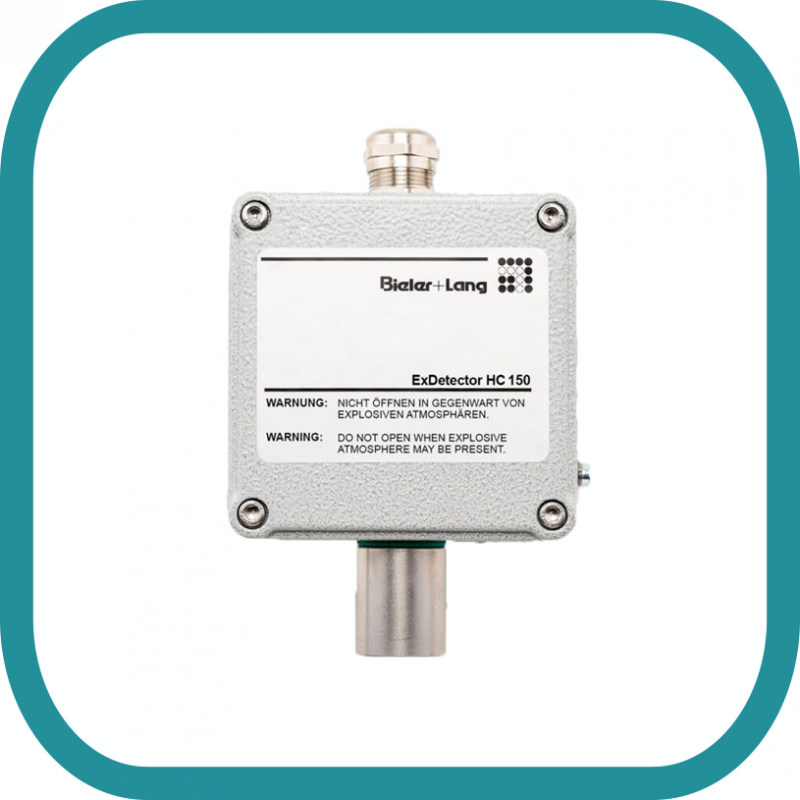

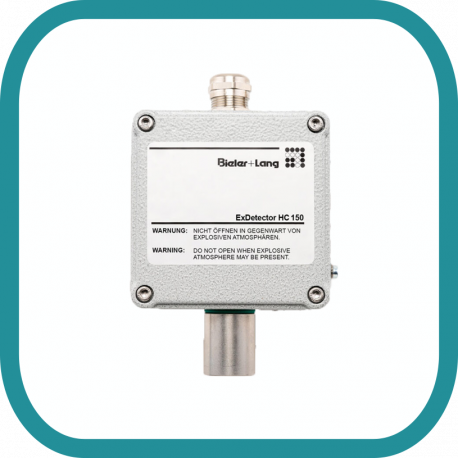

ExDetector HC-150 Gas Detector Bieler + Lang
30001010
New
exchange HC-66
● Measurement and display of the current concentration of potentially explosive gases and vapours
● Monitoring these gases and warning of their presence
● Triggering protective measures:
- Technical: measures to prevent the concentration increasing (fans; switching equipment off ...).
- Organisational: optical and acoustic signals.
● Measurement range: 0 ... 100 % LEL
● Measurement principle: catalytic combustion
● Linear measurement signal 4 ... 20 mA
● Suitable for areas where there is a Zone 2 explosion hazard
Data sheet
| Weight | 0,6 kg |
| Voltage | 18 ... 28 VDC |
More info
Detection gases Combustible gases / vapours 1)
Measurement principle: Catalytic combustion (thermal effect)
Response time (T90): Dependant on detection gas (typically < 30 sec)
Max. flow speed: 6 m/sec
Temperature range: -20 °C ... +80°C
Air pressure range: 800 ... 1200 hPa
Humidity range: 20 ... 90 % RH
Storage conditions: -25°C to 60°C
Air pressure: 800 hPa to 1200 hPa
Humidity: 20% RH to 90% RH
IP54
