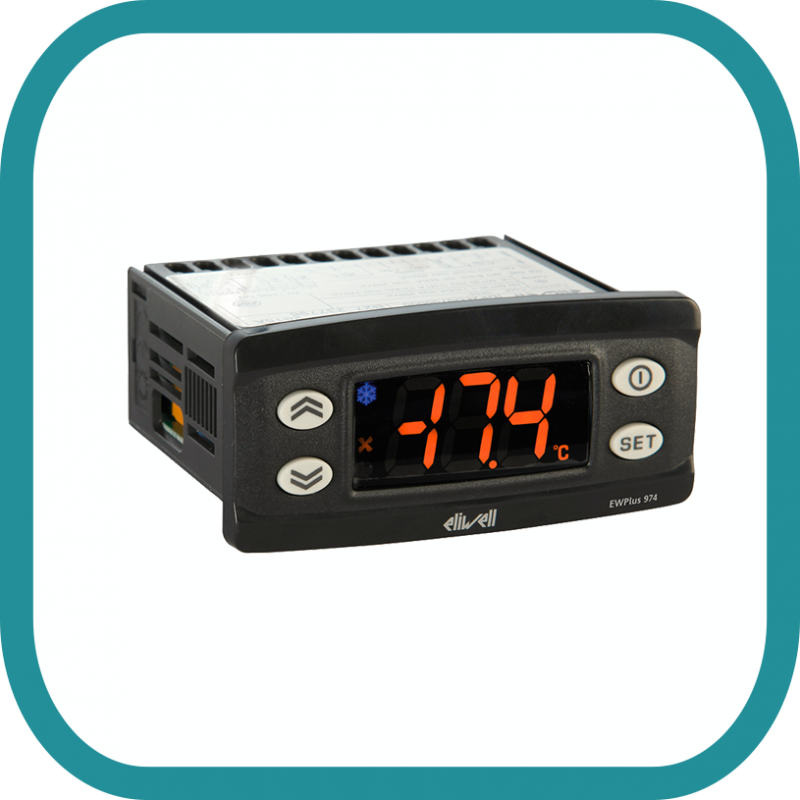

EWPLUS 974 Temperature controller
10001009
New
• Display with large digits and colored icons, to easily understand operating status
• Simple, intuitive menus for fast learning
• Suited for applications with hydrocarbons
• ENEC/UL/NSF Certifications (check on the device label)
Display range: NTC: -50,0...110,0°C
Display: decimal point * 3 digits + sign
Data sheet
| Dimensions | 74 mm x 32 mm x 59 mm |
| Voltage | 230V~ ±10% 50/60Hz |
More info
Analogue inputs: 1 NTC
Digital inputs: 1 digital (SELV)
Connections: TTL port for connection to Copy Card and Televise System via
Optional module (Bus Adapter)
Digital outputs: 1 SPDT: N.A. 8(4)A - N.C. 6(3)A max 250V
1 SPST 2Hp 12(12)A 250V~
1 SPST 5(2)A 250V~
Accuracy: better than 0.5% of end of scale +1 digit
Power consumption: 4,5W max
