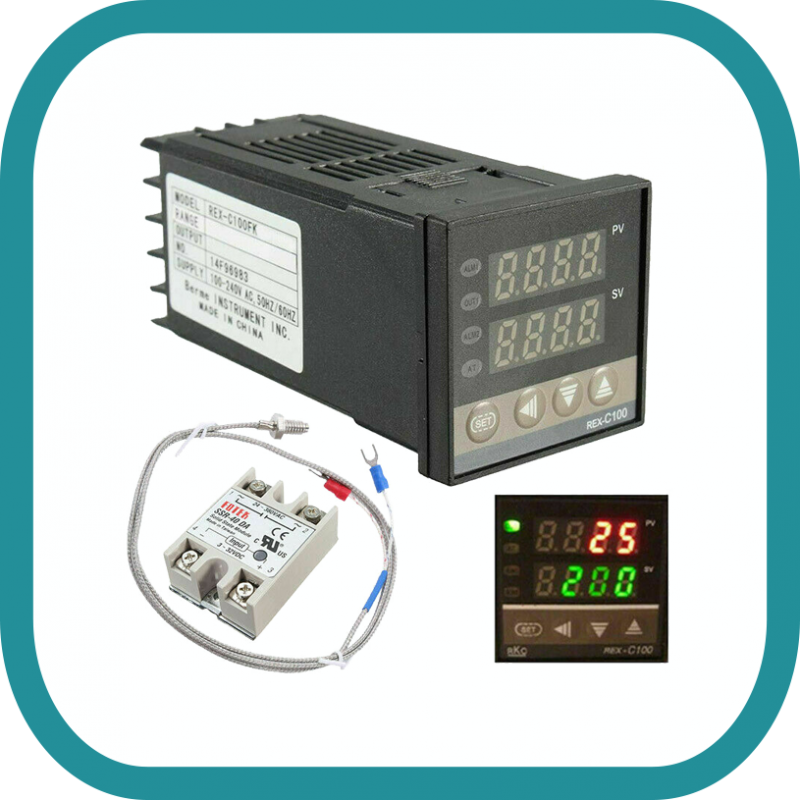

REX-C100 Temperature controller
10001006
New
PID temperature controller with thermocouple K type 0-1300 ℃ and relay 40A SSR REX-C100 FK07-V
Data sheet
| Weight | 0.17 kg. |
| Dimensions | 48mm X 48mm X 110 mm |
| Voltage | AC 100-240V 50/60HZ |
More info
- Measuring accuracy: ±0.5%FS
- Cold-end compensation tolerance: ±2℃（can be modified by software in 0~50℃）
- Resolution: 14 bit
- Sampling cycle: 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, and self-tuning can be indicated by:LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output: contact capacity 250V AC 3A (resistive load)
- Proportional band (P): 0~full range (ON/OFF control when set to 0)
- PID Temperature Controller Detective temperature rang: 0 to 1300℃
- Probe sensor temperature range 0 to 400℃
- Insulation resistance: >50M ohm (500V DC)
- Insulation resistance: 1500V AC/min
- Insulation resistance: Power Consumption < 10 VA
- Service environment: 0~50℃
- Environment with no corrosive gas: 30~85% RH
Max.40A SSR
- Output Current: 40A
- Input Voltage: DC 3-32V
- Output Voltage: 24-380V AC
- Output Voltage Range: Standard Type
